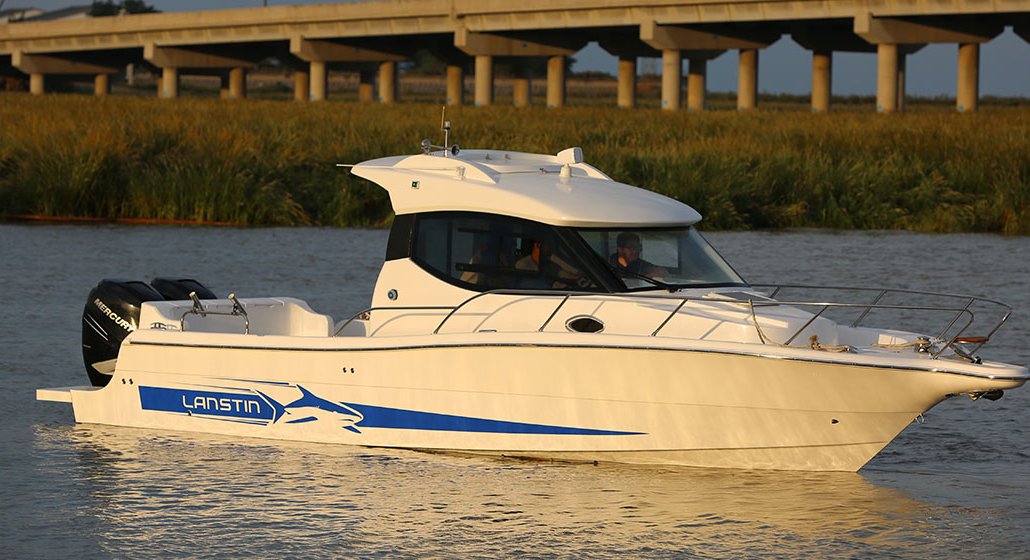

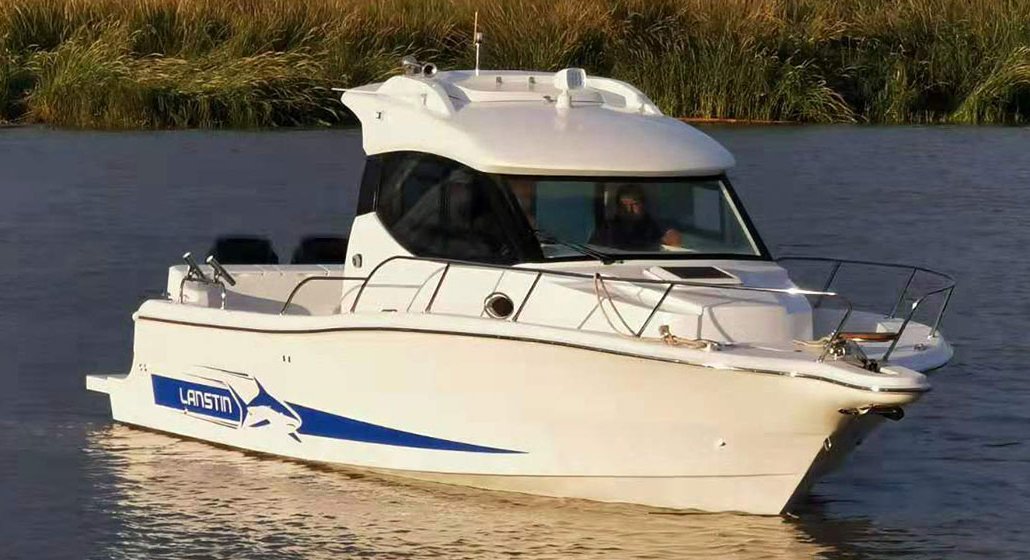

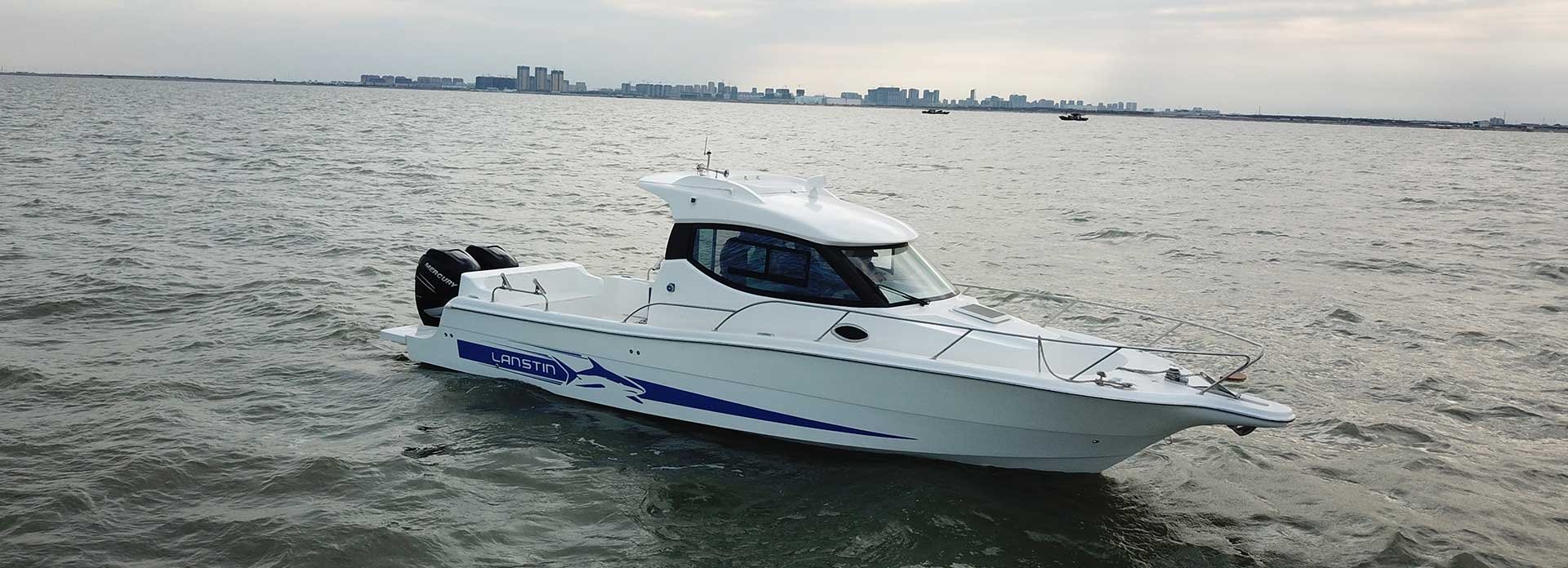

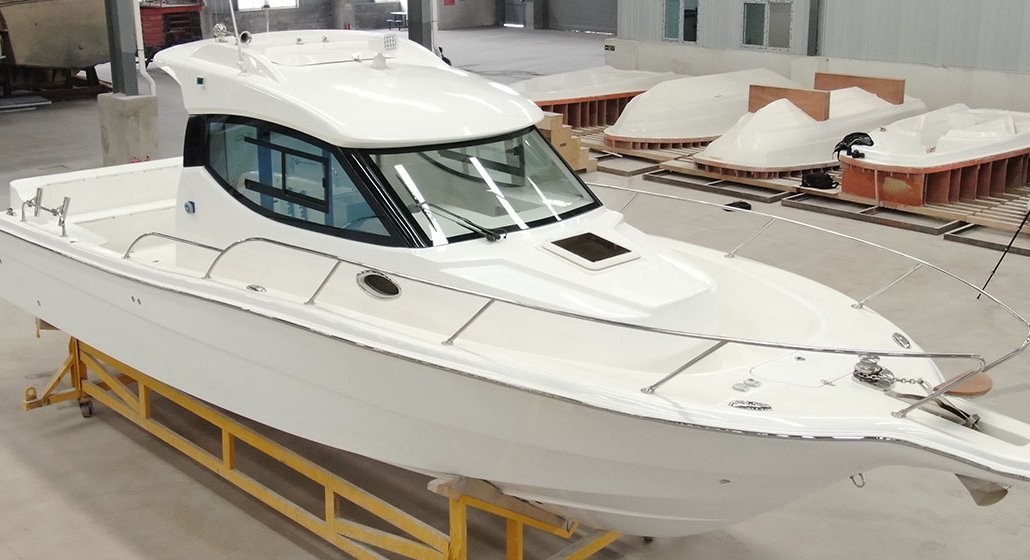

SY-36 Master Cabin Fishing Boat

  • Material：Fiberglass
    Overall Length (without boarding deck)：10.57 m / 34.7 ft
    Water line length：8.41 m

    a_0008_1A6B3175

    Material：Fiberglass
    Overall Length (without boarding deck)：10.57 m / 34.7 ft
    Water line length：8.41 m

  • Beam：3.03 m
    Depth：1.38 m
    Draft：0.51 m

    a_0004_mmexport1569814833502

    Beam：3.03 m
    Depth：1.38 m
    Draft：0.51 m

  • Full-load displacement：4.97 t
    Dry Weight：3500 kg
    Capacity：10 persons (incl.the driver)

    a_0007_DJI_0630

    Full-load displacement：4.97 t
    Dry Weight：3500 kg
    Capacity：10 persons (incl.the driver)

  • Cruising Speed：28 knots
    Max Speed：38 knots

    a_0006_IMG_20190926_130350

    Cruising Speed：28 knots
    Max Speed：38 knots

  • Navigation Area：B-OFFSHORE
    Engine & Installation type：Outboards

    a_0000_mmexport1571382690846

    Navigation Area：B-OFFSHORE
    Engine & Installation type：Outboards

  • Recommended Power：500HP - 640HP

    a_0003_mmexport1571382583863

    Recommended Power：500HP - 640HP

  • Water line length：8.41 m
    Beam：3.03 m
    Depth：1.38 m
    Draft：0.51 m
    Full-load displacement：4.97 t
    Dry Weight：3500 kg
    Capacity：10 persons (incl.the driver)
    Cruising Speed：28 knots
    Max Speed：38 knots
    Navigation Area：B-OFFSHORE
    Engine & Installation type：Outboards
    Recommended Power：500HP - 640HP

    a_0002_mmexport1571382627780

    Water line length：8.41 m
    Beam：3.03 m
    Depth：1.38 m
    Draft：0.51 m
    Full-load displacement：4.97 t
    Dry Weight：3500 kg
    Capacity：10 persons (incl.the driver)
    Cruising Speed：28 knots
    Max Speed：38 knots
    Navigation Area：B-OFFSHORE
    Engine & Installation type：Outboards
    Recommended Power：500HP - 640HP

  • Material：Fiberglass
    Overall Length (without boarding deck)：10.57 m / 34.7 ft
    Water line length：8.41 m
    Beam：3.03 m
    Depth：1.38 m
    Draft：0.51 m
    Full-load displacement：4.97 t
    Dry Weight：3500 kg
    Capacity：10 persons (incl.the driver)
    Cruising Speed：28 knots
    Max Speed：38 knots
    Navigation Area：B-OFFSHORE
    Engine & Installation type：Outboards
    Recommended Power：500HP - 640HP

    未标题-8

    Material：Fiberglass
    Overall Length (without boarding deck)：10.57 m / 34.7 ft
    Water line length：8.41 m
    Beam：3.03 m
    Depth：1.38 m
    Draft：0.51 m
    Full-load displacement：4.97 t
    Dry Weight：3500 kg
    Capacity：10 persons (incl.the driver)
    Cruising Speed：28 knots
    Max Speed：38 knots
    Navigation Area：B-OFFSHORE
    Engine & Installation type：Outboards
    Recommended Power：500HP - 640HP

    • Product Details

    Fittings ListEconomyStandardDeluxe
    DetailsQty
    Stainless steel folding cleat6 pcs●●●
    Stainless steel U-bolt3 pcs●●●

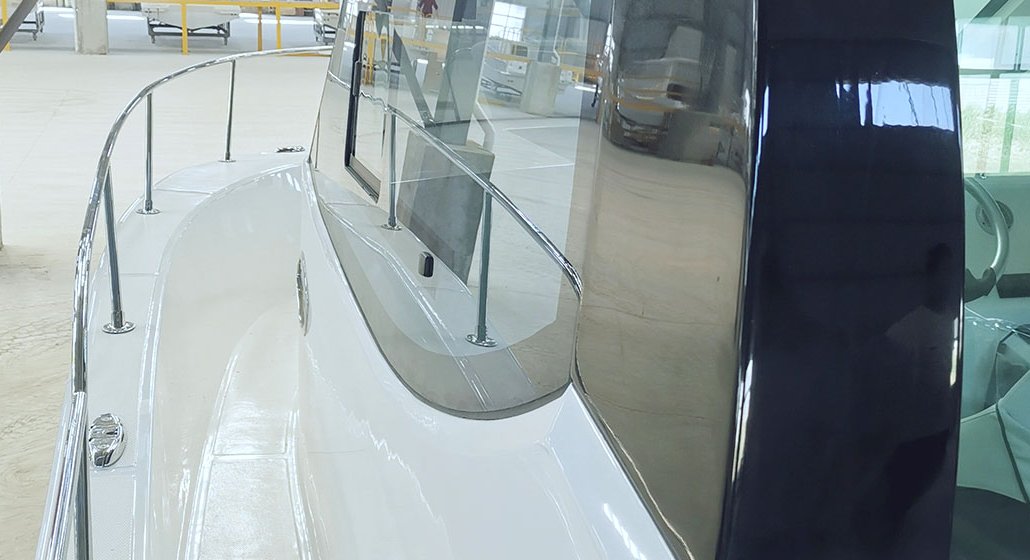

    Stainless steel guard rail (left & right)2 sets●●●
    Aluminum fuel tank800L●●●
    Stainless steel freshwater tank100L●●●
    Stainless steel wastewater tank100L●●●
    Stainless steel deck filler FUEL1 pc●●●
    Stainless steel deck filler WATER1 pc●●●
    Stainless steel thru-hull2 pcs●●●
    ABS plastic non-return thru-hull4 pcs●●●
    Stainless steel air vent2 pcs●●●
    Stainless steel deck hinges set1 set●●●
    Stainless steel built-in rod holder4 pcs

    		●
    Stainless steel external adjustable rod holder4 pcs●●●
    4 positions rod holders combo1 set

    		●
    Fiberglass deck folding chair (without EVA non-slip mat)2 pcs●●
    Fiberglass deck folding chair (with EVA non-slip mat)2 pcs

    		●
    Stainless steel telescopic ladder (3 steps)1 pc●●●
    Electric Anchoring Set (Stainless steel windlass, 10KG galvanized delta anchor, 40m galvanized anchor chain)1 set●●●
    Magnet compass1 pc●●●
    Port and starboard lights1 set●●●
    Masthead light (White all-around light)1 pc●●●
    Searchlight1 pc●●●
    Stern light1 pc●●●
    Marine horn1 set●●●
    Lightning rod1 set●●●
    Live well1 pc
    		●●
    Deck spray1 set
    		●●
    Shower system1 set

    		●
    Bilge pump1 set●●●
    Fuel level sensor + fuel gauge1 set●●●
    Marine switch panel1 set●●●
    Socket with USB ports1 pc●●●
    Windshield wiper1 pc●●●
    Icom VHF System1 set●●
    Marine bluetooth speaker system1 set
    		●●
    Marine battery and charging system1 set●●●

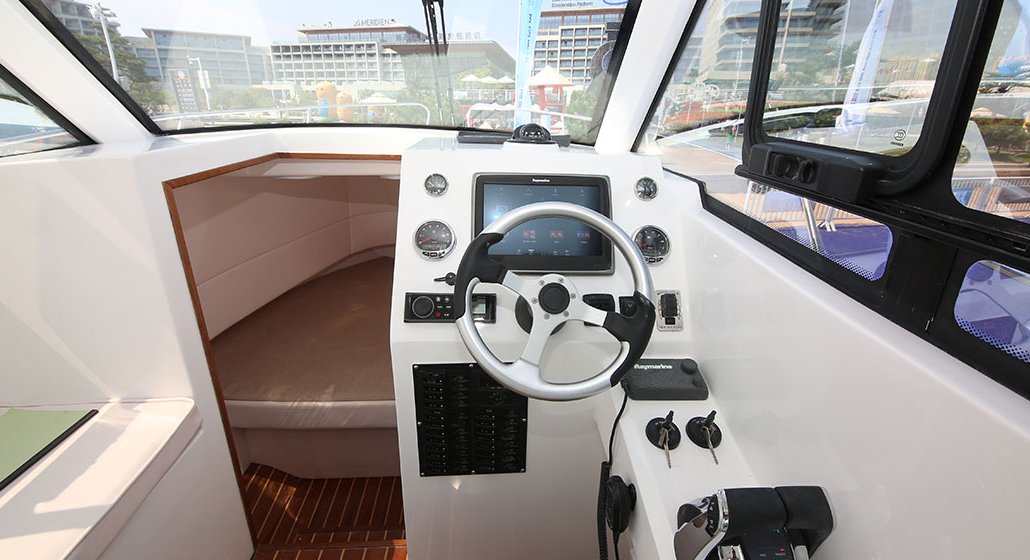

    Adjustable captain seat1 set●●●

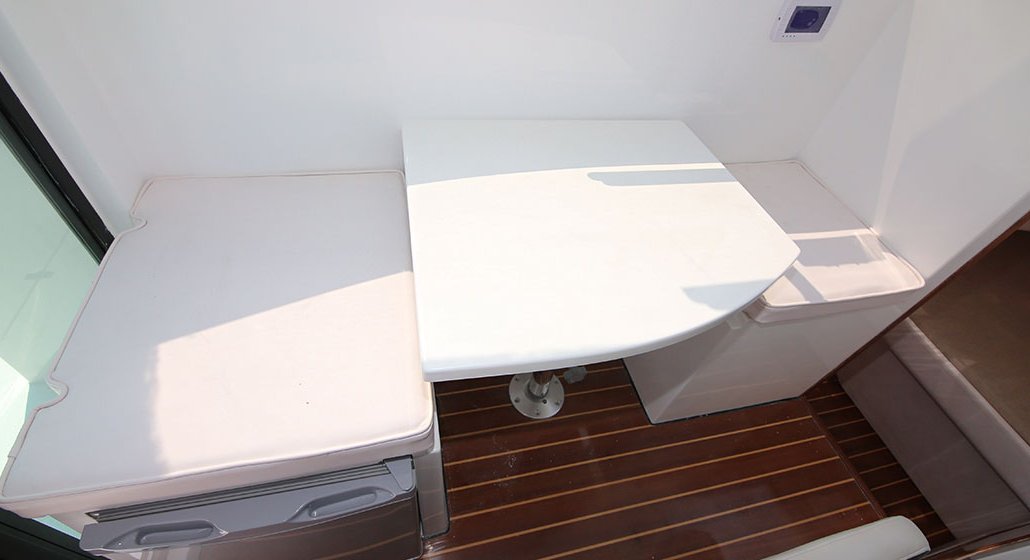

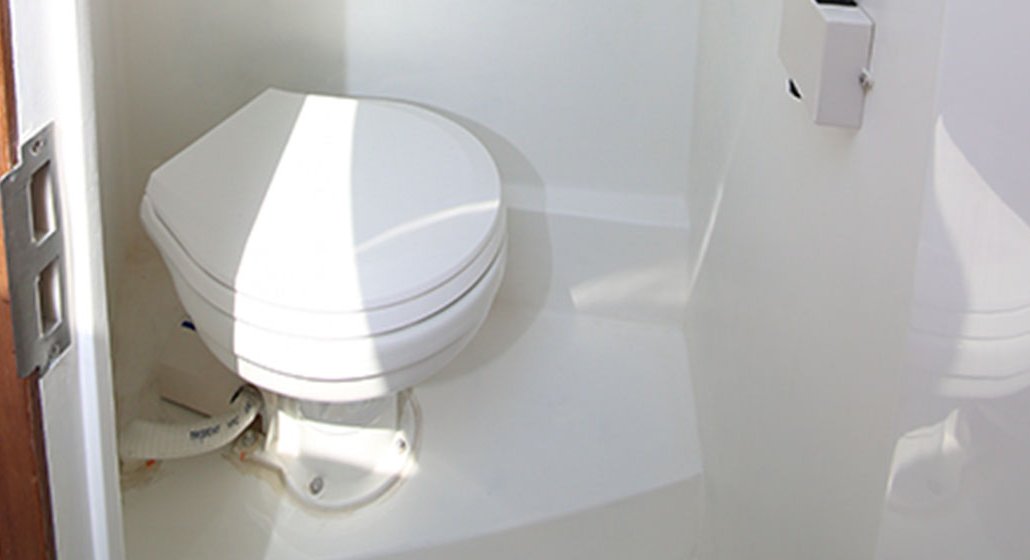

    Cabin lounge (Fiberglass sofa with PU cushions, Integrated restroom, cabin ceiling lights, cabin roof portlight)1 set●●●
    Reading lights (Cabin)2 pcs

    		●
    Mirror (Cabin)1 pc

    		●
    Water tap & basin (Cabin)1 set

    		●
    Water tap & basin (Deck)1 set
    		●●
    Outside cabin portlights (left & right)2 pcs     ●●●
    EVA Floor set (bow and stern deck + cabin, see Note 1 for optional designs)1 set

    		●
    Cup holder1 set

    		●
    Marine Refrigerator1 unit

    		●
    Marine air conditioner1 set

    		●
    Marine generator1 set

    		●
    Dock lines4pcs

    		●
    Fender Set (6 boat fenders + 6 fender lines)1 set

    		●
    Emergency sign1 set●●●
    National standard foam life jacket  10 pcs
    		●
    CE standard inflatable life jacket10 pcs

    		●
    Lifebuoy1 pc

    		●



    Optional fittingsEconomyStandardDeluxe
    DetailsQty
    Customized hull LOGO2 pcs〇〇〇
    Customized hull color1 set〇〇〇
    Teak wood floor1 set〇〇〇
    Cabin wooden soft decoration1 set〇〇〇
    Outside cabin extra operating system1 set〇〇〇
    LCD/LED TV1 set〇〇〇
    Aluminum alloy boat trailer 1 set〇〇〇
    Hot dipped galvanized boat trailer1 set〇〇〇
    10 person life raft in container pack + rack + hydrostatic pressure releaser1 set〇〇〇
    Mercury 4-stroke 250HP outboard motor set (or Yamaha with same horse power outboards)2 sets       〇〇〇
    Mercury 4-stroke 300HP outboard motor set (or Yamaha with same horse power outboards)2 sets       〇〇〇
